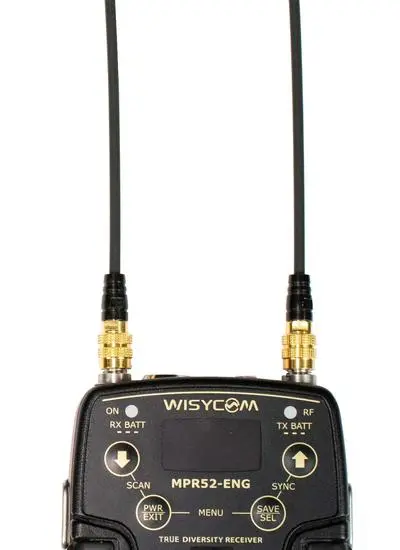

Wisycom MPR52-ENG Dobbel Mottaker
- DSP Analog og Digital Audio Output (AES3)
- Opp til 790 MHz båndbredde i 470-1160 MHz-serien
- Multiband front-end filtrering
- Bredbånd eller smalbånd DSP-FM-operasjon
- Extremt lav støy VCO med ultra rask spektrum skann
- OLED-display med høy kontrast
- Automatisk skann og send programmering via infrarød
- DSP basert for ekstrem fleksibilitet og multi-companding operasjoner
- Kan bruke enten en oppladbar litiumpakke eller to AA-batterier
- Monitor og kontroll via USB-tilkobling til en datamaskin som kjører Wisycom Manager 2.0-programvaren
Wisycom MPR52-ENG er en tokanals mangfoldsmottaker som avstemmer fra 470 - 1260 MHz og kan brukes enten for smal eller bredbånd med et valgbart 100/200 KHz filter. Den drives av et oppladbart litiumbatteri eller (2) AA.
MPR52-ENG har multiband-frontend-filtrering:
- 470-960 MHz Moving Filter
- 960-1160 MHz (DME) Moving Filter
- Landsspesifikke sagfiltre: USA 935-960 MHz og Japan 1240-1260 MHz
Via programvaren kan mottakeren settes til å fungere i enten Smal- eller brebånd-modus. Smalbånd tillater 50% mer bånd effektivitet og ca 3dB ekstra følsomhet og støy avvisning.
Den spenningsstyrte oscillatoren tillater en ultra-rask spektrumskann. Mottakeren kan til og med automatisk programmere senderen over infared etter en skanning. MPR52-ENG kan også overvåkes og styres via en USB-tilkobling til en datamaskin som kjører WisyCom Manager 2.0-programvaren, som også kan lese skanningsdata fra mottakeren.

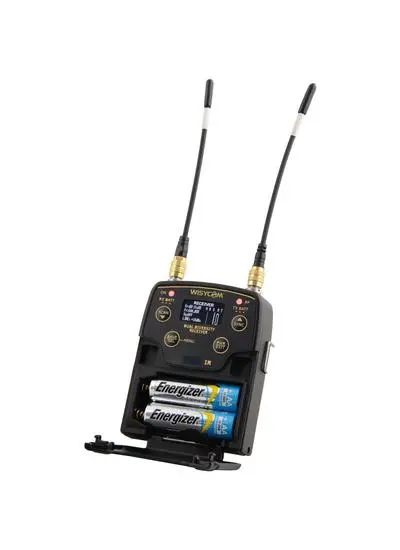

Fleksible batteriløsninger tillater at enheten drives via et oppladbart litiumbatteri eller to AA-batterier. Batteripakken kan lades inne i enheten over USB eller i en dedikert lader.
| Frequency Ranges | 470 ÷ 800 MHz, 960 ÷ 1160 MHz (DME) and 940 ÷ 960 MHz |
| Switchable Channels | 2400 managed in 40 groups ofr 60 frequencies completely user customizable |
| Switching-Window | Up 790 MHz |
| Frequencies | microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step; frequencies is easily PC reprogrammed with USBmini interface or optional UPKmini programmer |
| Frequency Error | Less than ± 2.5 ppm, within the rated temperature range |
| Modulation | FM mono, wideband or narrowband IFB (SW selectable) |
| Peak Deviation | ±54 kHz (wideband), ± 40 kHz (narrowband) |
| Antenna Input Impedance | 50 ohm sma type (SWR < 1:2; typ. 1:1.4) |
| Sensitivity | 2 µV ( 6 dBµV), for SND/N > 58 dB; 5 µV (14 dBµV), for SND/N > 98 dB in the whole switching-window |
| Amplitude Response | Less than 0.5 dB (for RF input signal:6 dBµV ÷ 100 dBµV) |
| Co-Channel Rejection | Greater than 80 dB typical (for channel spacing = 400 kHz) |
| Spurious Emissions | Less than 2 nW (typical = 0.1 pW) |
| Noise Reduction System | ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized; ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis; Others, compatible with most systems, thru an internal DSP emulation of SA572, SA575 and Rms envelope compander chip set, fully user programmable |
| AF Bandwidth | 30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 15 kHz (narrowband) |
| Frequency Response | ± 0.5 dB in the 30 Hz ÷ 19 kHz range (wideband), ± 0.5 dB in the 30 Hz ÷ 13 kHz (narrowband) |
| Distortion | 0.3 % typical |
| SND/D Ratio (analog) | 100 dB typical |
| SND/D Ratio (AES3) | Less than 125 dB typical |
| Audio Output | Electronically balanced on 5 pin mini-XLR Female connector Analog or digital (SW selectable), impedance = 200 ohm |
| Audio Output Level | MAX +18 dBu (peak deviation), adjustable in one dB step in a range of 54 dB |
| Digital Output | AES3 @ 48 kHz |
| Monitor Output | Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread) |
| Monitor Output Level | 2 X 100mW @ 32 Ohm |
| Managing Interface | mini USB |
| Power Leds | 3 colors dedicate LED |
| Display | OLED 128x64 (white) |
| Powering | 2 x IEC-LR6 1.5V size-AA alkaline or NiMh rechargeable ; C3-V3 battery pack ; KLIC 8000 or CR-V3R lithium (i.e. DR9708 duracell) |
| Battery Life | approx. 7 hours with MPRLBP Lithium-ion battery pack CS-KLIC8000 type ; approx. 3.5 hours with 2x AA Alkaline batteries Energizer ; approx. 4.5 hours with 2x AA NiMH 2.5Ah |
| Temperature Range | -10 ÷ + 50 °C |
| Dimensions | 91mm x 71.5mm x 27mm (HxWxD) with clip |
| Weight | 100 g approx. without batteries |
