MARSHALL CS-0734-12MP

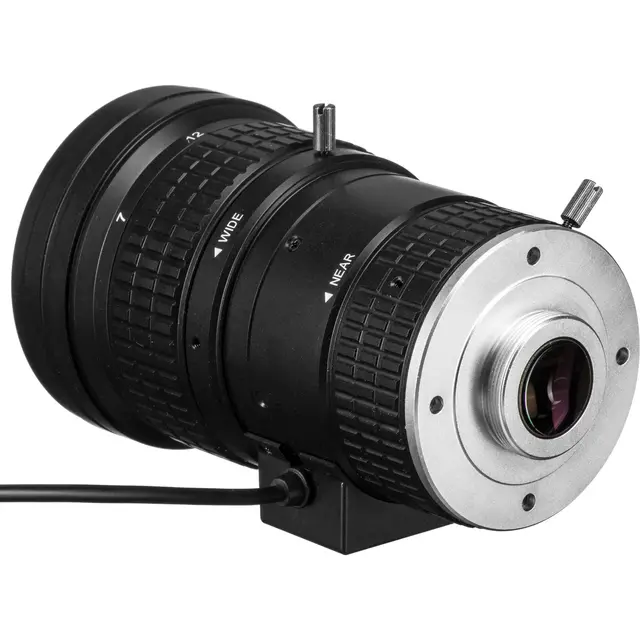

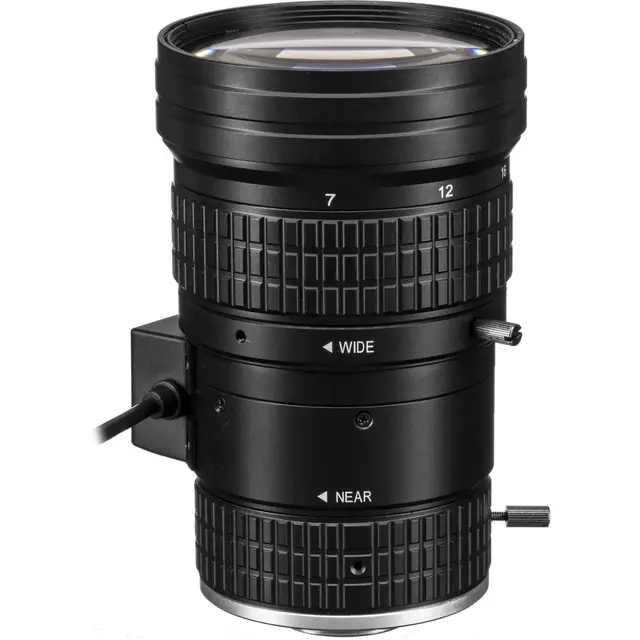

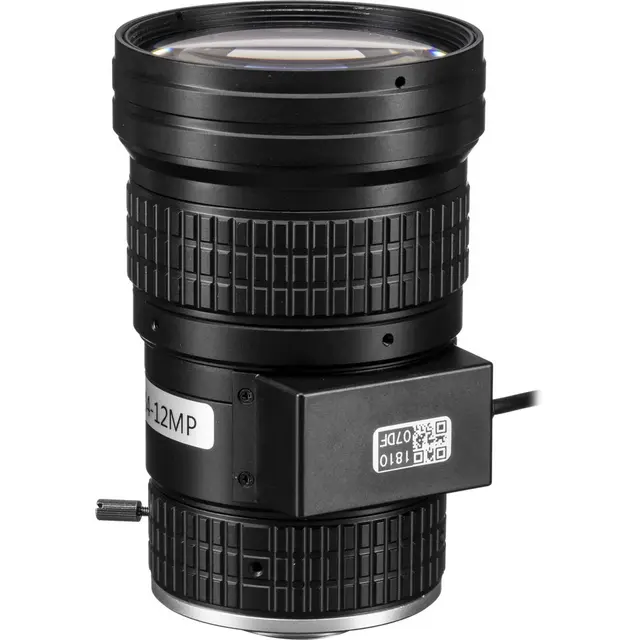

CS-Mount 7-34mm varifokal linse fra Marshall Electronics er designet for bruk med 12MP kameraer som har en 1 / 1,7 "sensor. Dette objektivet har en 7-34mm brennvidde med et horisontalt synsfelt på 53,6-16,7 °. Det har en DC auto iris, sammen med manuell betjening av zoom og fokus.

Lens Mount CS
Sensor Compatibility 1/1.7", 1/1.8", 1/1.9" (12 MP)
Focal Length 7 to 34mm
Back Focal Length 7.1mm
Aperture f/0.95 to 1
Angle of View 1/1.7" Sensor
Diagonal: 66.5 to 20.5°
Horizontal: 53.6 to 16.7°
Vertical: 40.5 to 12.4°
1/1.7" Sensor
Diagonal: 61.6 to 19.5°
Horizontal: 54.5 to 17°
Vertical: 29 to 9°
1/1.8" Sensor
Diagonal: 64 to 20°
Horizontal: 53.4 to 16.6°
Vertical: 36 to 11°
1/1.8" Sensor
Diagonal: 61 to 19.3°
Horizontal: 53.4 to 16.6°
Vertical: 30 to 9.2°
1/1.9" Sensor
Diagonal: 60.2 to 19°
Horizontal: 52 to 16°
Vertical: 29.4 to 9.1°
Minimum Focus Distance 1 m
Focus Type Manual Focus
Iris Type DC Auto
Distortion -3%
Flange Back Length 12.5 mm
Weight  550 g

Pakken inneholder:

• Marshall Electronics CS-0734-12MP CS-Mount 7-34mm Varifocal Lens
