Når du vil ha den raskeste rutingen du kan få, lar Videohub Smart Control Pro deg rute med et enkelt knappetrykk. Programmer hver knapp for et enkelt ruters krysspunkt. Du kan programmere for å ha flere destinasjoner.

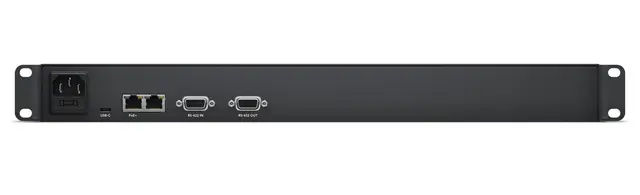

Ethernet

RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.

RS-422

In and Out (for future implementation)

Computer Interface

USB-C for configuration and software updates.

Power

100 - 240 AC

Macro Capability

Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.

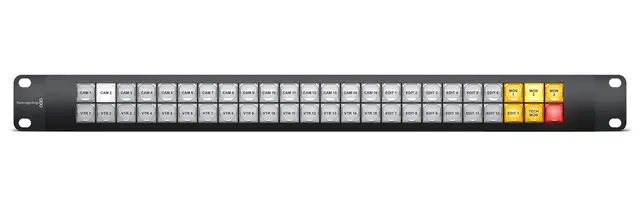

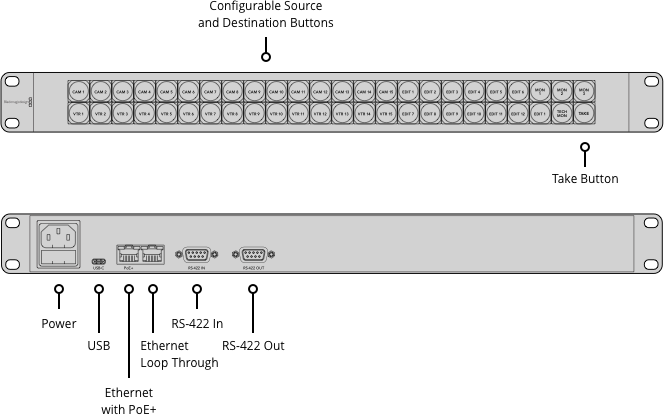

Hardware Control

48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.

Software

Internal Software upgrade via included firmware updater application via USB.

Operating Systems

Mac 10.13 High Sierra,
Mac 10.14 Mojave or later.

Windows 10.

Physical Installation

1 rack unit size. Less than 3 inches deep.

Button Configuration

Included free for Windows™ and Mac™ via USB 2.0high speed (480Mb/s) interface.

Power Requirements

Power Fail Protection

Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.

Power Supply

Internal 100 - 240 V AC

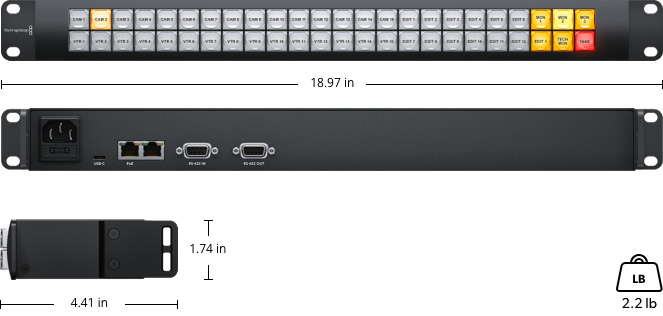

Physical Specifications

Environmental Specifications

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Videohub Smart Control Pro

Warranty

12 Months Limited Warranty.
